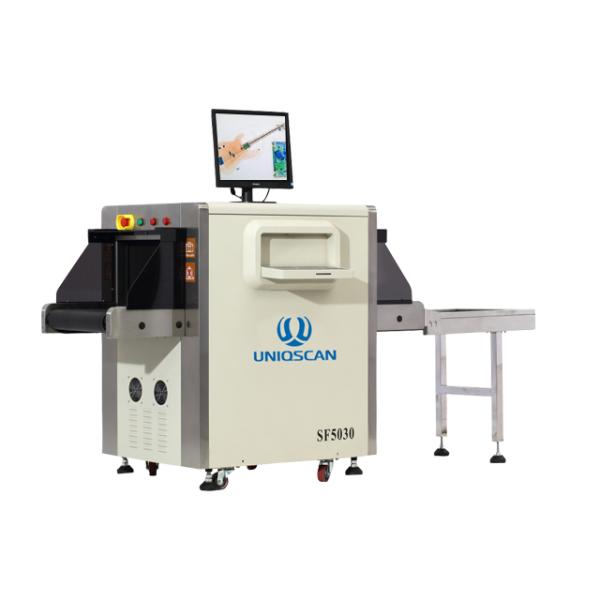

| - Scanner X-Ray for checking parcels and luggage |
| - 1x LCD monitor 19’’ |
| - 1 x control keyboard equipped with a key-lock |
| - 1 x conveyor belt |
| - 1x supply electric cable with a minimum lenght of 3 meters |
| - 1x speed controller of the conveyor belts |
| |
| Size of the tunnel: width = 50cm / Height = 30 cm |
| Maximum load of the transporter: up to 100 kg |
| Sensor X-ray - Single Energy L-shaped photodiode array detector |
| Speed of the convoyer belt : adjustable |
| Operating voltage :220-240 Vac + /-10٥/٥ ,50HZ |
| |
| |
| lmage performances |
| Wire Resolution: 38 AWG minimum |
| Penetration Resolution: 10 mm minimum |
| Spatial resolution : 1 mm minimum (horizontal and vertical) |
| Discrimination of materials |
| USB interface |
| Contrast: 24 levels of visibility.4096 of gray |
| Video Screen: 19 "LCD, color, high resolution, low radiation, ergonomic, auto stabilizer. |
| |
| |
| Technical specifications of the generator |
| Anode Voltage: 80kv |
| Cooling: Sealed oil bath |
| Operatig cycle : 100% |
| X-Ray Working: <0.1 mrem/h |
| |
| |
| 2.4. Image processing specification : |
| Image processing without stopping the conveyor. |
| Full image representation on the monitor, without hatching and distributed over the entire surface of the screen |
| Zoom: x64 |
| Multi energy image. |
| Edge Enhancement |
| Black/White Color Viewing |
| Variable contrast |
| Pseudo-image |
| Low and high penetration function. |
| Video reversing function. |
| Transfer of images on computer and printer |
| Black/White Color Viewing |
| equipped with a software that allows the detection of explosives, narcotics. |
| Manual archiving of pictures |
| Automatic archiving of pictures |
| Operator Training Program (software which allows to use the Scanner X-Ray as a training terminal without the necessity of parcels and luggage on the conveyor belt) |
| Fictitious pictures projection (TIP). |
| Suspicious luggage alarm: possibility of acoustic tagging of suspicious luggage |
| |
| Standard specifications |
| Luggage counter |
| Operation counter of the equipment. |
| Identification of operators by passwords |
| Faults History |
| Software for the analysis of the errors. |
| Safety Switch on each side of the tunnel which must stop the operation |
| Visual signalization when the Scanner X-Ray is started |
| The conveyor move forwards and backwards with radioscopic image acquisition |
| |
| |
| Environmental specifications |
| Storage: (-10 ° C to 50 ° C) minimum. |
| Relative Humidity: 95% without condensation. |
| Operating Temperature : (-5°C to 45°C) minimum |
| |
